Security checkpoint operators face a harsh operational reality. They have mere seconds to identify complex threats hidden within densely packed luggage. In high-throughput environments like commercial airports and private aviation terminals, relying on shape recognition fails. Modern threats mimic everyday items perfectly. Operators must immediately distinguish material classes to maintain safety and throughput.
Distinguishing between benign items and sophisticated threats presents a massive challenge. A block of C4 explosive looks remarkably similar to a block of cheese under basic imaging. A specialized ceramic knife shares the same visual profile as a plastic comb. When these materials overlap inside a cluttered suitcase, visual identification becomes nearly impossible without advanced technology.
Dual-energy X-ray technology provides the solution. Material discrimination serves as the industry standard for modern security checkpoints. Understanding how these systems process and display organic inorganic x ray scanner colors remains critical. Procurement teams must evaluate scanner accuracy, compliance standards, and operator efficiency based on these specific capabilities.
Material Discrimination Relies on Atomic Mass: Modern scanners use dual-energy X-rays to calculate the Effective Atomic Number (Z-eff) of scanned objects, not just their density or shape.
Standardized Color Coding: The industry standard maps organic materials to orange, inorganic materials to blue, and mixed/light inorganic materials to green, allowing operators to quickly distinguish material classes.
Software Capabilities Dictate Threat Detection: High-end scanners offer organic/inorganic stripping and pseudo-color manipulation, which are critical features for reducing false alarms in cluttered baggage.
Procurement Priority: When evaluating systems, buyers must weigh penetration depth against image resolution and ensure the software UI minimizes operator cognitive load.
Table of Contents

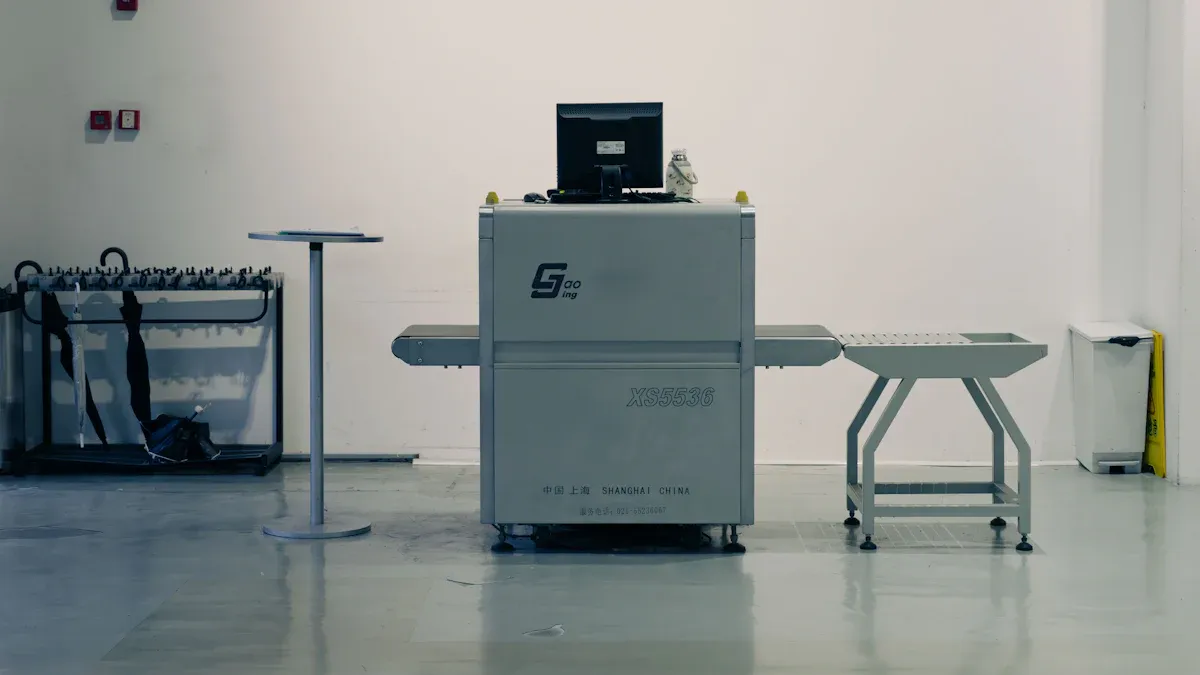

Standard single-energy X-ray machines produce a flat, monochromatic image based purely on how much radiation an object blocks. That tells you nothing about chemical makeup. Dual-energy systems operate differently. They emit a broad spectrum of X-rays from a single generator, typically operating between 140kV and 160kV for standard checkpoint baggage. As these X-rays pass through a passenger's bag, they hit a primary detector array. This first array registers the lower-energy photons.
The remaining X-rays then pass through a thin metallic filter, usually made of copper. This copper filter physically blocks the low-energy photons, allowing only the high-energy photons to pass through and strike a secondary detector array positioned directly behind the first. The system software constantly compares the attenuation—the absorption rates—between these two distinct energy levels. Different elements absorb high and low-energy X-rays at different mathematical ratios. By calculating the difference in attenuation between the front and back detector arrays, the scanner determines the exact material composition of the object inside the baggage.
The foundation of material discrimination lies in the Effective Atomic Number, known in the field as Z-eff. Every element on the periodic table has an atomic number based on its protons. When materials combine to form complex objects, they create an average atomic number. Inorganic substances possess higher atomic numbers than organic ones. Because of their heavier atomic structure, inorganic materials absorb X-ray photons much more efficiently.
The scanner uses the dual-energy attenuation data to calculate the precise Z-eff of every pixel on the screen. It then categorizes these numbers into specific ranges. This scientific framework translates invisible atomic data into the visual color spectrum that operators rely on. The system does not guess what the object is; it mathematically proves what the object is made of based on how it interacts with radiation.
Security personnel must understand the operational difference between density and atomic mass. Density refers to how tightly packed a material's molecules are. Atomic mass refers to the weight of the atoms themselves. A highly dense organic material, like a thick wheel of cheese or a tightly bound stack of paper, might block a significant amount of X-rays. However, its atomic mass remains low.
Conversely, a low-density inorganic material, like a thin sheet of aluminum, might block very few X-rays but possesses a higher atomic mass. If a scanner only measured density, the thick cheese would appear darker and more threatening than the aluminum. By discriminating based on atomic mass via Z-eff calculations, the scanner correctly identifies the cheese as organic and the aluminum as inorganic, preventing dangerous misidentification.
Material Discrimination Color Mapping Guide
Color Display | Effective Atomic Number (Z-eff) | Common Benign Materials | Common Threat Profiles |
|---|---|---|---|
Orange | Less than 10 | Food, paper, textiles, wood, plastics | Explosives, narcotics, agricultural contraband |
Green | Between 10 and 18 | Aluminum, glass, ceramics | Ceramic weapons, circuit boards, detonators |
Blue | Greater than 18 | Steel, copper, cast iron, silver | Firearms, ammunition, blades, shrapnel |
The scanner assigns the color orange to materials with an Effective Atomic Number below 10. This category encompasses all organic matter. Common benign items include food products, paper documents, textiles, clothing, and wood. A common misconception assumes "organic" only refers to biological matter. In X-ray physics, it also includes most plastics, synthetic polymers, and rubber.
The threat profile for the orange category is severe. Most military and homemade explosives, including C4, TNT, and TATP, consist of organic elements like carbon, nitrogen, and oxygen. Narcotics and prohibited agricultural products also fall squarely into this Z-eff range. The primary operational challenge involves distinguishing dense, benign organics from explosive compounds. A thick book and a block of explosives both appear orange, requiring the operator to analyze shape, context, and density variations within the orange spectrum.
Materials with an Effective Atomic Number greater than 18 appear blue on the monitor. This category represents heavy, inorganic elements. Everyday benign items include steel tools, cast iron components, copper wiring, silver jewelry, and dense metal alloys. The blue spectrum indicates materials with heavy atomic structures that absorb X-rays highly efficiently.
The threat profile for blue items includes firearms, ammunition, metal blades, and the shrapnel components of improvised explosive devices (IEDs). Penetration limits become a significant factor here. Highly dense inorganic objects block nearly all X-rays, appearing dark blue or completely black on the screen. These opaque areas can easily shield organic threats hidden behind them. Operators must recognize when an object is too dense to penetrate and manually inspect the bag to ensure no threats are concealed in the shadow of the metal.
The scanner displays materials with an Effective Atomic Number between 10 and 18 as green. This intermediate category captures light inorganic materials and mixed compositions. Common benign items include aluminum cans, glass bottles, and ceramic mugs. It represents elements that fall between light organics and heavy metals on the periodic table.
The threat profile for green items is highly specialized. It includes non-metallic ceramic weapons, which evade traditional metal detectors. It also highlights electronic components like circuit boards and detonators, as well as aluminum-housed incendiary devices. The green spectrum frequently introduces a clutter factor. When an orange organic item overlaps with a blue inorganic item in the X-ray beam path, the system calculates an averaged Z-eff. This overlap often results in a green display, masking the individual components and requiring software manipulation to resolve.
Hardware captures the data, but software makes it actionable. Organic and inorganic stripping capabilities are essential tools for any security checkpoint. This feature allows operators to temporarily remove specific material classes from the display monitor. By pressing a single button, an operator can strip away all blue inorganic items, leaving only the orange and green items visible.
This capability directly combats the clutter factor. If a smuggler hides a block of organic explosives behind a dense steel plate, the standard view might only show a dark blue mass. By stripping the inorganic data, the software reveals the hidden orange anomaly. Conversely, stripping organic materials helps operators spot fine metal wires or small blades buried deep inside thick clothing or dense food products. This feature drastically reduces false negatives during baggage screening.
To effectively utilize stripping features during a live shift, operators follow a specific sequence:
Scan the bag in the standard three-color view to establish a baseline understanding of the contents.
Apply the inorganic strip to remove all blue metals, exposing any hidden orange organic anomalies that might indicate explosives.
Apply the organic strip to remove all orange materials, isolating blue and green items to check for detonator wires or hidden blades.
Toggle back to the standard view to assess the overall context of any identified anomalies before calling for a manual bag search.
Modern security software moves beyond manual color interpretation. Automated Threat Recognition (ATR) algorithms actively analyze the Z-eff data in real-time. When the software detects a specific atomic number and density combination associated with known explosives or narcotics, it triggers an alert. The system overlays red boxes or flashing indicators directly onto the suspect item on the screen.
This automation speeds up checkpoint throughput significantly. It acts as a digital safety net, drawing the operator's eye immediately to high-risk areas. ATR algorithms are continuously updated to recognize new and emerging threat compositions. By highlighting specific Z-eff ranges, the software reduces reliance on human visual acuity alone, ensuring that even well-concealed threats trigger a mandatory secondary inspection.
Image clarity directly impacts threat detection rates. Advanced user interface features like edge enhancement sharpen the boundaries between overlapping materials. When a bag contains a chaotic mix of cables, clothing, and electronics, edge enhancement defines the borders of each individual object. This prevents items from bleeding into one another visually, making it easier to identify weapon profiles.
Pseudo-color mapping allows operators to toggle different high-contrast palettes. While the orange, blue, and green standard remains the baseline, operators can switch to inverse video, black-and-white, or high-penetration color schemes. These alternative palettes highlight different density gradients that might be invisible in the standard view. Furthermore, allowing operators to adjust contrast and color mapping reduces eye strain during long shifts, maintaining their focus and accuracy over time.
Procurement teams face a technical trade-off when selecting X-ray systems. Manufacturers often highlight penetration depth—the maximum thickness of steel the X-ray can see through. While high penetration is excellent for cargo, a machine optimized purely for blasting through thick steel often sacrifices micro-resolution.
Wire resolution measures the scanner's ability to display fine details, typically rated by American Wire Gauge (AWG) standards. A machine must possess the resolution to display the microscopic copper wires used in IED detonators. Buyers must balance the need to penetrate dense inorganic objects with the necessity of seeing fine mixed-material details. Selecting a machine with massive penetration but poor wire resolution leaves checkpoints vulnerable to sophisticated, small-scale explosive devices.
The human element remains the most critical component of any security checkpoint. Hardware specifications mean nothing if the operator cannot interpret the data effectively. Monitor quality, color fidelity, and software interface speed directly impact operator fatigue. Staring at complex, scrolling images for hours causes cognitive degradation.
Procurement teams must evaluate the User Interface (UI) and User Experience (UX) of the scanner software. Are the stripping buttons intuitively placed? Does the monitor provide crisp, high-contrast colors without glare? Does the software lag when applying edge enhancement? A sluggish or overly complex interface increases cognitive load. High cognitive load accelerates fatigue, which directly increases the false-negative rate. Investing in ergonomic, highly responsive software interfaces protects the integrity of the screening process.
Security infrastructure operates within a strict regulatory landscape. Systems deployed in high-risk environments must meet specific certification standards. In the United States, the Transportation Security Administration (TSA) dictates stringent requirements for automated explosive detection systems. In Europe, the European Civil Aviation Conference (ECAC) sets similar rigorous benchmarks.
Color-mapping accuracy and Z-eff calculation precision factor heavily into these certifications. Procurement teams cannot purchase uncertified equipment for regulated environments. Buyers must verify that the scanner's material discrimination capabilities meet the exact performance standards required by their governing aviation or federal authority. Failing to ensure compliance results in costly equipment replacements and severe security vulnerabilities.
Real-world baggage is rarely neatly separated. Passengers pack chaotic assortments of electronics, liquids, dense clothing, and metal tools. This creates massive visual clutter. Shielding occurs when dense inorganic objects intentionally or accidentally block the X-ray beam, hiding organic threats behind them. Standard 2D scanners struggle to resolve severe clutter, often rendering the entire bag as an impenetrable dark mass.
To mitigate this risk at high-security checkpoints, facilities should implement 3D Computed Tomography (CT) scanners. CT technology takes hundreds of X-ray slices from multiple angles, creating a 3D model of the bag. Operators can virtually rotate the bag on the screen, looking behind dense metal shields and separating overlapping green clutter into distinct orange and blue components. For standard 2D deployments, strict protocols requiring manual bag searches for any unresolvable dark zones must be enforced.
X-ray generators and detector arrays degrade over time. This physical degradation leads to calibration drift. As the sensors lose sensitivity, the system's ability to accurately calculate Z-eff diminishes. Color-shifting occurs. An organic explosive might start appearing as a mixed green material, or a light metal might shift toward orange. This hardware drift completely undermines the material discrimination process.
Facilities must implement rigorous, daily calibration routines. Operators should use standardized test pieces, such as ASTM step wedges, to verify the scanner's accuracy at the start of every shift. These test pieces contain known organic, inorganic, and mixed materials of varying densities. If the scanner fails to display the correct colors for the test piece, it must be taken offline and recalibrated by a technician immediately.
The most advanced dual-energy scanner is only as effective as the person viewing the monitor. Hardware cannot compensate for an untrained eye. Interpreting overlapping colors, utilizing stripping features, and recognizing the subtle density variations within the orange spectrum require extensive practice.
Facilities must structure continuous training programs. Initial certification is insufficient. Operators need weekly exposure to extensive image libraries containing complex, overlapping threats. Training should focus on building color-recognition muscle memory. Simulated threat image projection (TIP) software should be active on all live machines, randomly inserting digital threats into real passenger bags to keep operators alert and constantly test their material discrimination skills.
Reliable material discrimination depends not only on X-ray hardware, but also on image processing, software usability, calibration accuracy, and operator training. For security checkpoints handling high passenger or baggage volumes, these factors should be evaluated together rather than relying on penetration specifications alone.
For organizations evaluating professional security screening equipment, Safeway System specializes in X-ray baggage scanners and a broad range of security inspection equipment, with more than 20 years of experience in security X-ray technology and equipment production. Its solutions are used across applications including airports, public transportation, ports, borders, critical infrastructure, hotels, and commercial facilities, providing a relevant equipment background for projects requiring reliable baggage and material inspection capabilities.
Request raw, unedited sample image sets from vendors demonstrating dense clutter penetration to verify actual field performance.
Schedule on-site software UI demonstrations using your active security personnel to evaluate cognitive load and interface responsiveness.
Verify all shortlisted equipment against current TSA or ECAC certification standards for automated explosive detection.
Implement daily calibration protocols using standardized ASTM test pieces to prevent hardware drift and color-shifting.
A: The colors represent material composition based on atomic number. Orange indicates organic materials like food, plastics, and explosives. Blue represents inorganic materials such as steel, copper, and dense metals. Green indicates mixed materials or light inorganics like aluminum, glass, and overlapping items.
A: Most explosives and synthetic polymers consist of organic elements like carbon, nitrogen, and oxygen. These elements have low atomic numbers. The scanner's dual-energy system identifies this low atomic mass and assigns the color orange, categorizing them alongside other organic matter.
A: Standard dual-energy scanners group all organics under the orange spectrum, requiring operators to analyze density and shape. Advanced systems utilize automated explosive detection algorithms that analyze specific density and atomic number combinations to differentiate benign organics from explosive compounds.
A: When an organic and inorganic item overlap in the X-ray beam, the scanner calculates a combined average atomic number. This often renders the overlapping area as green on the display. Operators must use software stripping features to remove one material class and reveal hidden items.
A: X-rays have physical penetration limits. Highly dense metals block the X-ray beam entirely, creating opaque or black zones on the monitor. Operators cannot see through these zones. Standard protocol dictates that any bag containing unresolvable dark areas must undergo a manual secondary inspection.
A: Yes, the orange, blue, and green baseline is an industry standard used globally. However, the exact hues, contrast levels, and the specific software tools used to manipulate and strip these colors vary significantly between different manufacturers and software versions.
