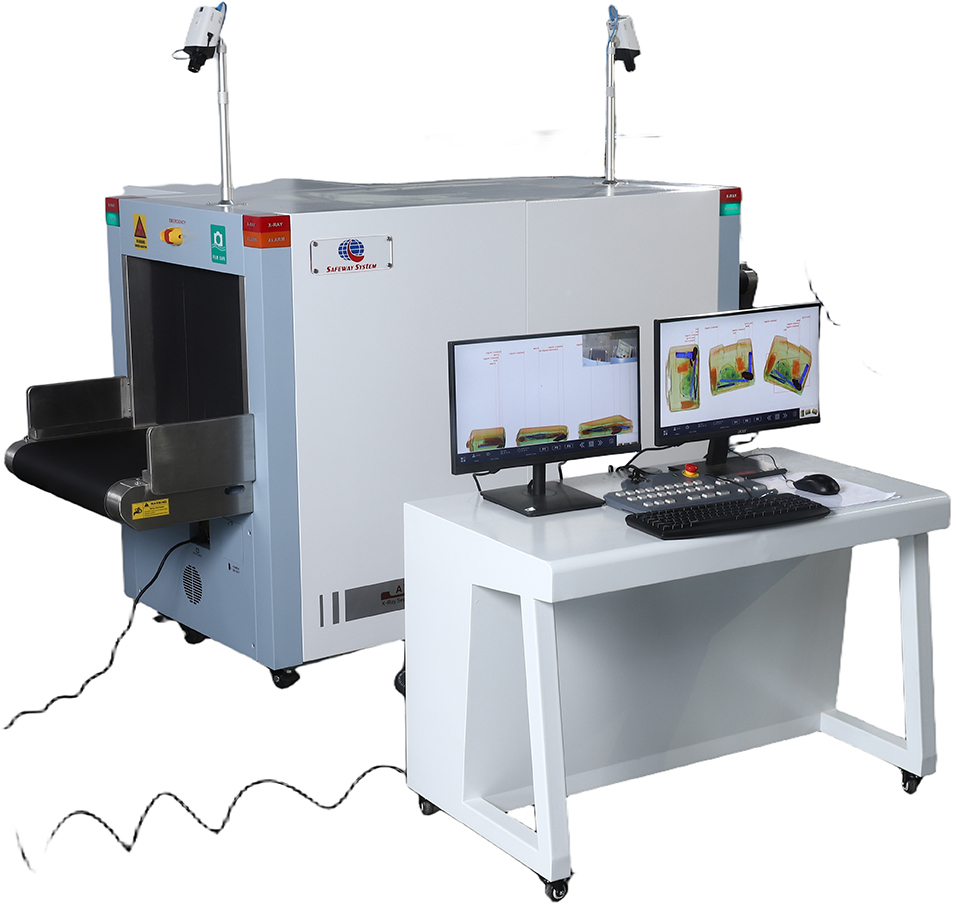

Middle Size Dual View X-ray Baggage and Luggage Airport Inspection Scanner for Public Security Scanning
with CCTV, AI and Remote Management Platform

Safeway System has recently launched its new-generation AT6550D X-ray security inspection system, introducing advanced screening technology combined with intelligent AI capabilities.

In today's security landscape, fast and accurate threat detection is essential-even in highly complex and high-traffic environments. Locations such as transportation hubs, logistics centers, and large public venues require continuous baggage and parcel screening to ensure safety and operational efficiency. These inspections must deliver reliable, real-time results as part of an integrated security framework.

The Safeway System AI-powered X-ray Baggage & Parcel Inspection Solution is engineered for multiple inspection scenarios. It leverages high-performance algorithms to assist operators in identifying potential threats and restricted items during scanning. By combining high-definition X-ray imaging with integrated video monitoring, the system provides enhanced operational visibility and long-term reliability.

Intelligent Detection with Higher Efficiency

AI-based recognition technology enables the system to identify up to 35 categories of prohibited items, significantly improving screening throughput. This reduces operator workload while increasing accuracy and overall inspection speed.

Integrated X-ray and Video Correlation

The system synchronizes X-ray imaging with CCTV footage, allowing seamless event tracking and structured reporting. This dual-layer visualization improves traceability and strengthens security documentation.

Advanced Networking and Data Management

Through network integration and electronic reporting functions, the system supports remote management via HCP platform connectivity. Users can perform detailed event analysis, data review, and secure information uploading for centralized control.

Enhanced Image Clarity with Raytina Technology

Safeway System incorporates advanced image enhancement technology similar to next-generation Raytina processing, delivering sharper and more detailed X-ray visuals for improved decision-making.

System Function Description

1. Login

Users enter username and password, with password displayed in ciphertext (asterisks).

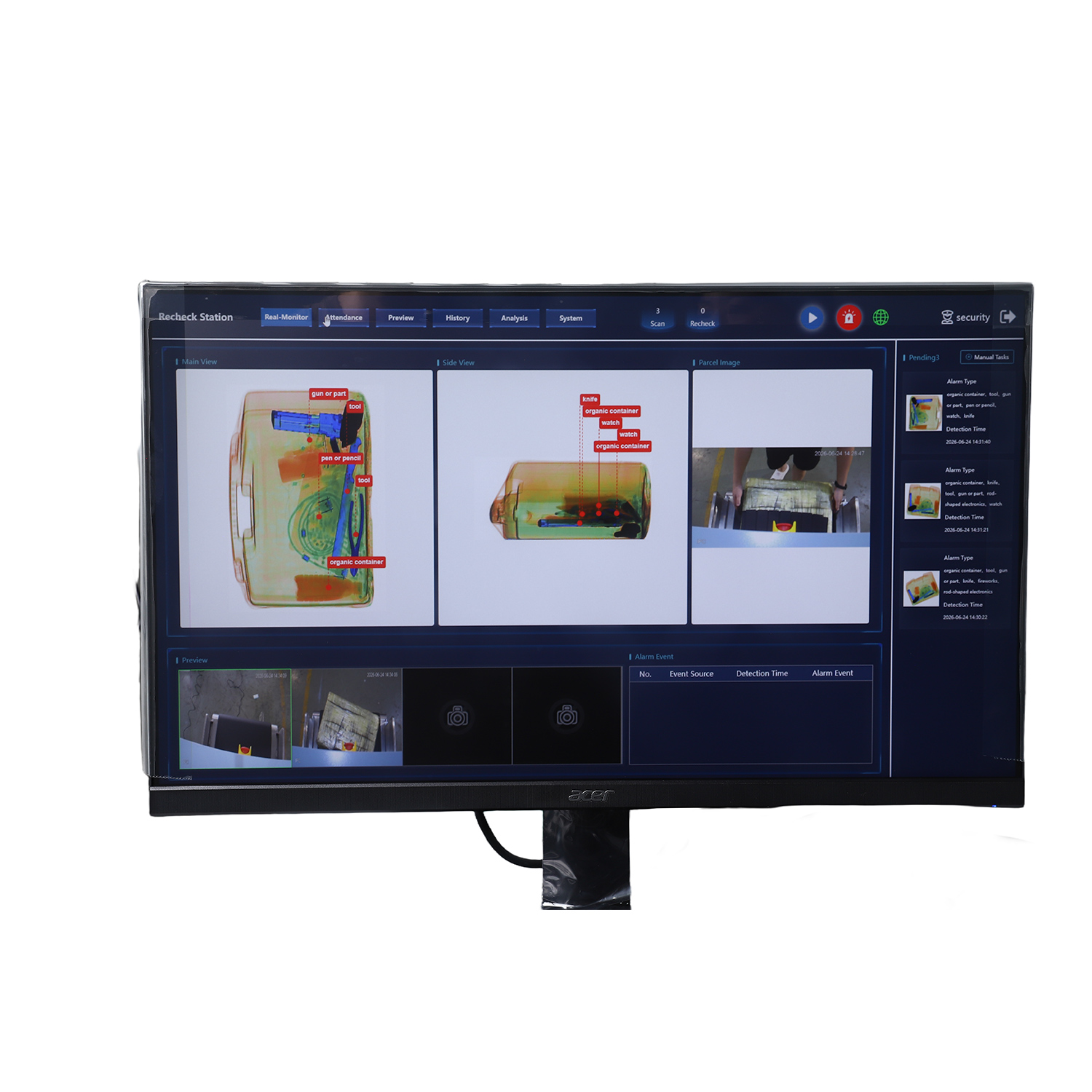

2. Real-time Monitoring

1) Pending Tasks

The system automatically issues recheck tasks when connected successfully. New tasks trigger audio prompts and display in the image area. Supports custom tasks and result entry. Submitted tasks are automatically removed from the list.

2) Contraband Inspection Images

Supports display of X-ray main view, side view and physical images of inspected packages. Supports manual task creation.

3) Package Inspection Result Registration Area

Security inspectors report package inspection results. Supports one-click "Release" for safe packages. For contraband, select type and handling result. Passenger information can be entered via ID card reader or manual input.

4) One-key Alarm

Supports global one-key alarm reporting for emergencies, linking with central system for rapid response.

5) Equipment Status Area

Displays network connection status and equipment status with different icons for normal, abnormal and fault conditions.

3. Attendance Check

Supports face recognition attendance for security inspectors with attendance type selection and daily record keeping.

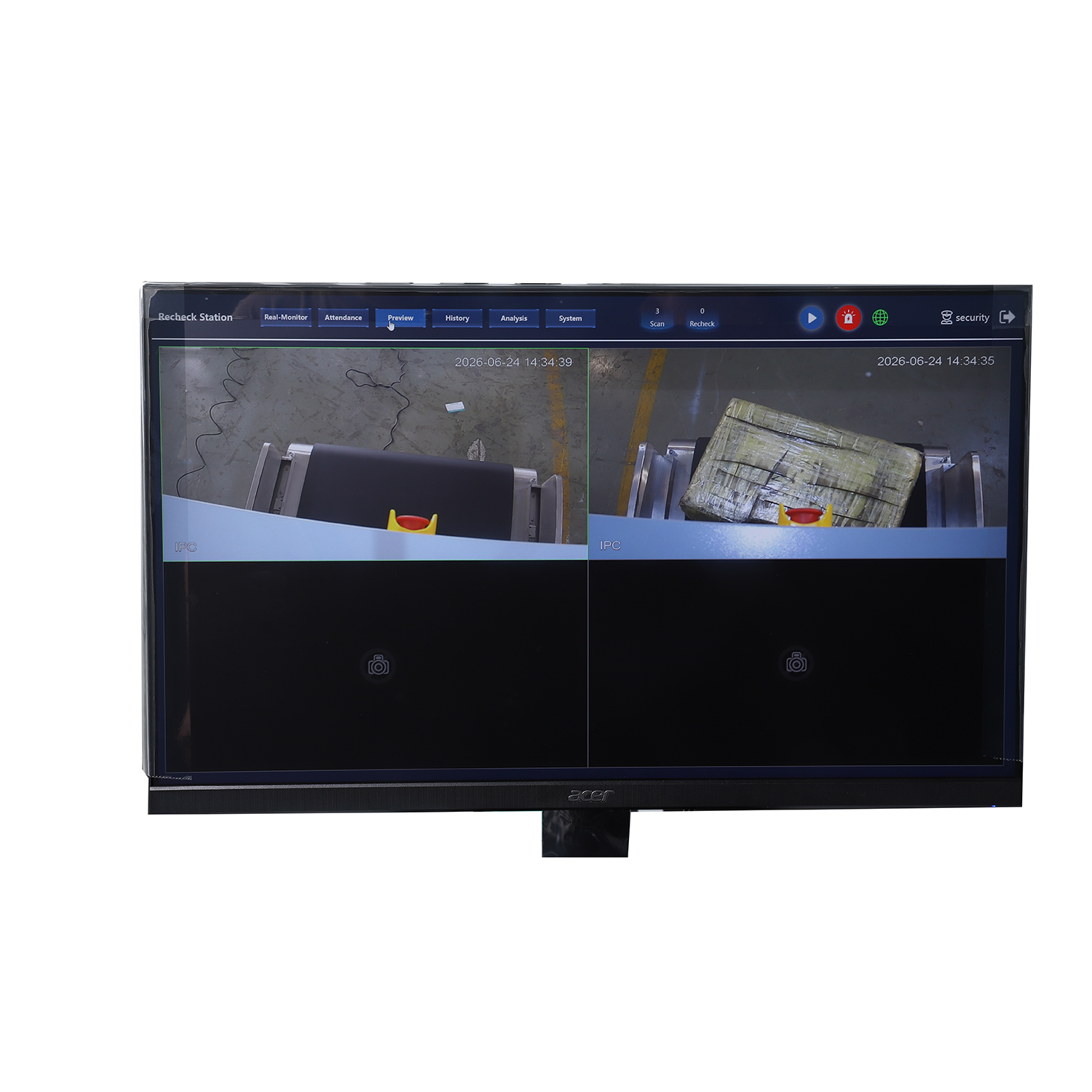

4. Video Preview

Supports real-time preview of four video channels.

5. Video Playback

Supports historical video retrieval by time, with play, pause, drag and download functions.

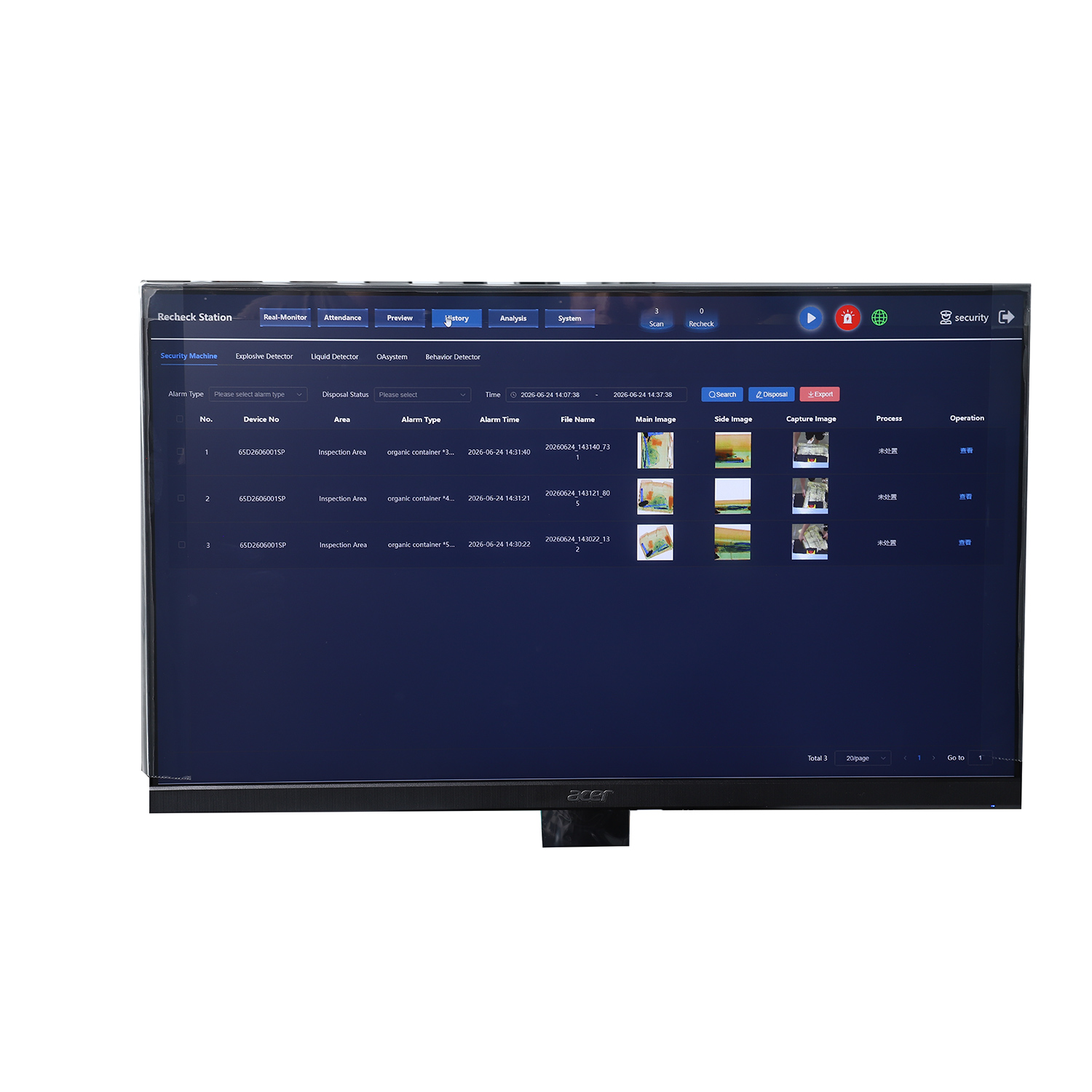

6. Historical Retrieval

Supports filtering historical data by time, equipment type and handling status. Views package details including images, videos, inspection results and passenger information.

7. Statistical Analysis

Supports security data statistical analysis by equipment type in hourly, daily and monthly dimensions.

8. System Management

1) Equipment Management

Supports status monitoring and operation management of various security equipment including X-ray machines, detectors, cameras and displays. Manages equipment models, parameters and specifications.

2) User Management

Supports user data management and video operation permission control.

3) Operation Log

Records user login, logout, video playback and download operations.
