AT1500C
Safeway System

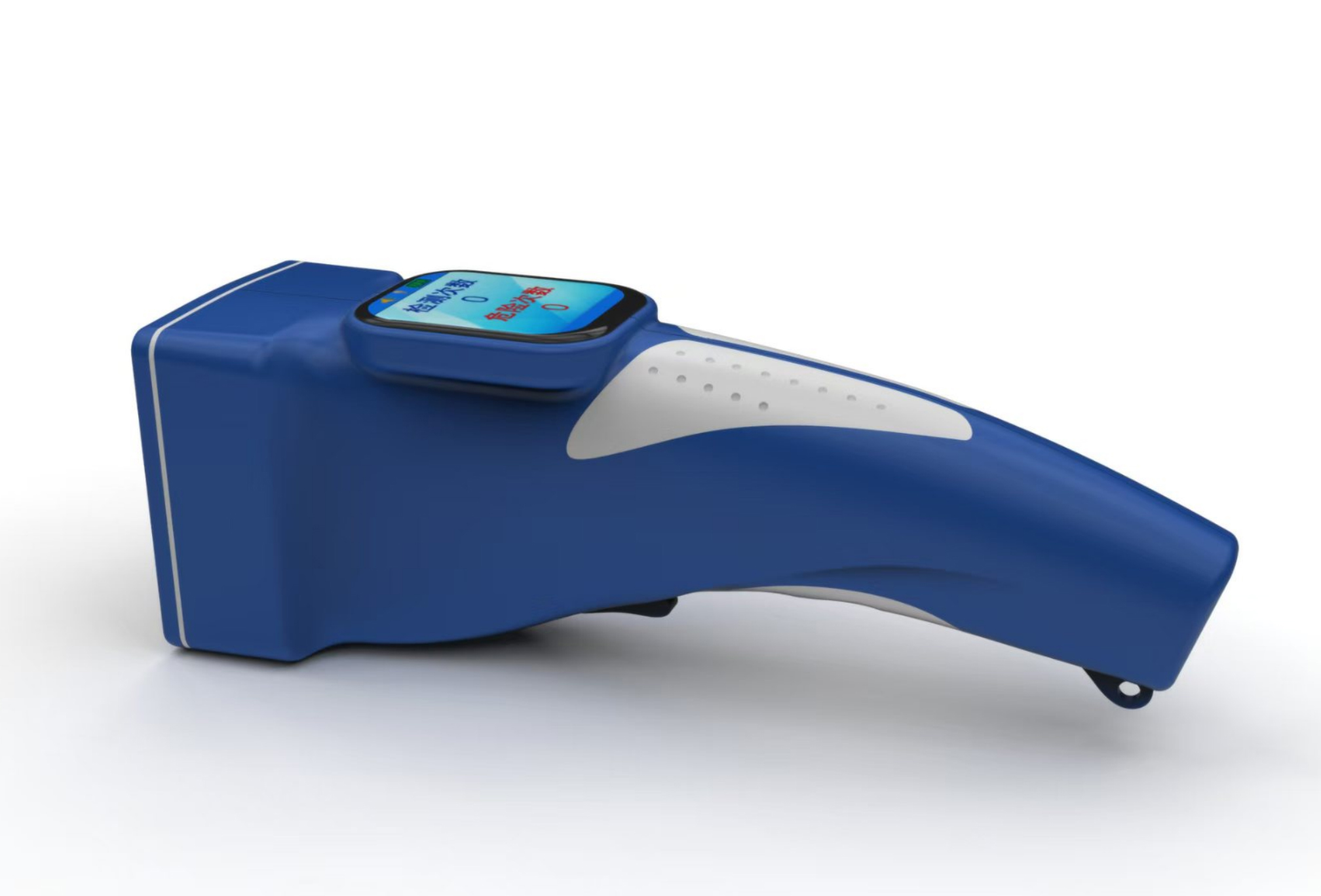

AT1500C long-distance handheld dangerous liquid safety detector is a security inspection instrument specially designed for detecting flammable and explosive liquids. AT1500C is small in size, fast in analysis, easy to operate, and uses AI algorithm for intelligent detection and identification. It can quickly identify flammable and explosive liquids from a long distance. It is widely used in security inspections in prisons, stations, subways, airports, public security, judicial and government agencies, large-scale sports events, and other places.
* Long-distance detection:
5mm away from the container to be inspected, accurate detection can be achieved;
AI intelligent identification: built-in AI intelligent algorithm, fast and accurate identification of dangerous liquids;
Irregular container detection: liquids in irregular containers are more convenient, fast and accurate to detect;
* Ultra-large screen display:
3.5-inch ultra-large screen displays the test results in all directions;
Acid and alkali detection function: unique hydrochloric acid, sulfuric acid, nitric acid, sodium hydroxide, potassium hydroxide and other detection functions;
* Quick detection:
fast detection speed, test analysis time is about 1 second, and the detection speed is far ahead;
Wide detection range: can detect more than 40 kinds of flammable and explosive dangerous liquids;
Portable: The whole machine weighs 340g, which is small and light and easy to carry;
* Data storage:
provides liquid test result storage and retrieval function, with a storage capacity of no less than 10,000 tests, and can export data through the USB interface;
* Alarm mode:
with buzzer sound and light alarm and display alarm;
* After-sales worry-free:
24-hour after-sales telephone to provide technical support to customers at any time, 150-person service team distributed all over the country to provide installation, maintenance and repair.
1. Analysis test time: 1 second
2. Start-up time: 3 seconds
3. Self-calibration function test: The instrument has a self-calibration function, and the self-calibration time does not exceed 3 seconds.
Human-machine interface inspection: The human-machine interface of the equipment should provide a full Chinese or graphical interface, use a color 3.5-inch LCD display, and have its own light source, with a night light function.
4. Detectable container size: volume: not less than 50ml, height not less than 60mm, diameter: not less than 30mm.
5. Sampling method: The equipment uses long-distance safety inspection technology, and can realize liquid item safety inspection without opening the container. It can be detected at a distance of 5mm from the container being inspected.
6. Detectable liquids: The instrument can alarm for flammable or dangerous liquids in the following sealed containers: 93# gasoline, kerosene, diesel, ether, isopropyl ether, petroleum ether, acetaldehyde, ethylene glycol, nitrobenzene, propylene oxide, n-heptane, rosin water, acetone, benzene, toluene, xylene, dichloroethane, ethanol, isopropyl alcohol, 70% ethanol, carbon disulfide, methanol, nitromethane, 70% isopropyl alcohol, paint thinner (nitro thinner solvent), trichloromethane, tetrahydrofuran, paint, n-hexane, hydrochloric acid, sulfuric acid, nitric acid, sodium hydroxide, potassium hydroxide, etc.
7. Data storage: The equipment provides liquid detection result storage and retrieval functions, with a storage capacity of no less than 5,000 tests, and has the networking function of data statistics and uploading to the computer, and the data is exported with a standard USB interface.
8. Alarm mode: sound/light alarm/LCD graphic display, the alarm sound can be turned off separately.
9. Power supply mode: The device supports high-capacity lithium rechargeable battery power supply mode. After one charge, the device can be used continuously for no less than 5,000 times and the continuous working time is no less than 5 hours.

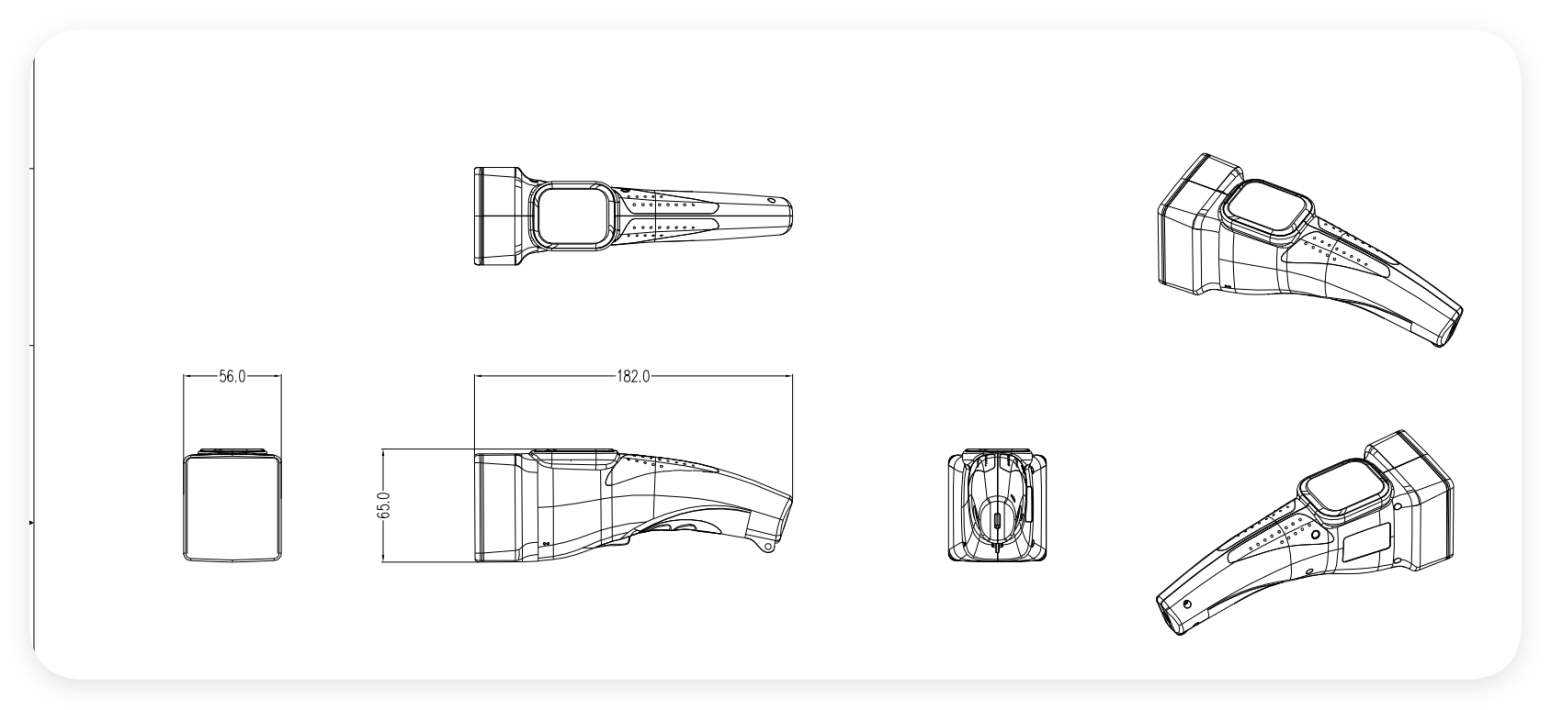

Dimensions: 182 (length) × 56 (width) × 65 (height) mm
Weight: 340g (including battery)
Working temperature/humidity -10℃-+55℃/0%～90%
Charging power supply Input : AC 100~240V/50-60Hz; Output 5V/2.1A
Atmospheric pressure : 86kPa～106kPa
