Did you know that even with advanced technology, human operators still catch over 60% of dangerous items at security checkpoints? That's right - in our world of high-tech scanners, trained human eyes remain the most critical defense.
Many people assume modern x-ray baggage scanners can automatically spot every threat. But the truth is these machines can't think or judge - they only create images. Without skilled operators who understand what they're seeing, prohibited items easily slip through.
In this guide, you'll learn exactly how to "read" x-ray images like security professionals do. We'll break down the color codes, show you what weapons and explosives really look like on screen, and teach you the scanning techniques used at airports worldwide. Get ready to master the art of spotting hidden dangers!
Ever wonder what happens when your bag slides into that mysterious tunnel at security? Let's break down the science—and the secrets—behind these machines.
Dual-energy X-ray transmission fundamentals
Two different X-ray energies hit your bag. Low-energy beams get absorbed by dense items (like metals). High-energy ones blast through softer stuff (clothes, plastics). The scanner compares how much of each energy passes through, revealing hidden layers.
Material differentiation: Organic vs. inorganic vs. mixed objects
Organic (food, explosives, drugs): Low density, absorbs low-energy X-rays → Orange
Inorganic (glass, ceramics): Medium density → Green
Metals (guns, knives): High density, absorbs high-energy X-rays → Blue.
Color-coding system decoded
Here's how operators spot threats at a glance:
| Color | Material Type | Examples | Threat Relevance |
|---|---|---|---|
| Orange | Organic | Explosives, drugs, food | High risk (e.g., plastic explosives) |
| Blue | Metals | Guns, knives, batteries | Critical threats |
| Green | Mixed/Inorganic | Glass, ceramics, electronics | Moderate risk (e.g., hidden blades) |
Penetration capabilities by material thickness
Scanners struggle with ultra-dense items:
≤30mm steel: Clear imaging
50mm steel: Details blurred (e.g., thick battery packs). High-energy systems (like mobile scanners for trucks) penetrate 350mm steel—but typical airport units can't.
"Blind spots" in standard baggage x-ray machines
Stacked objects: A phone layered over a knife hides the blade's shape.
Lead-lined bags: Block X-rays entirely—creating black voids.
Organic clutter: Explosives buried in food (e.g., peanut butter jars) mimic safe items.
Resolution thresholds for micro-threat detection
Ever miss a razor blade? Here's why:
Wire resolution: Standard scanners detect wires ≥1.2mm thick. Finer wires (e.g., detonators) vanish.
Low-contrast threats: Ceramic knives in green zones? Often missed unless operators zoom manually.
⚠️ Operator Tip: Cluttered bags force "image overload." Training focuses on high-risk zones (bag corners, electronics compartments) to beat blind spots.

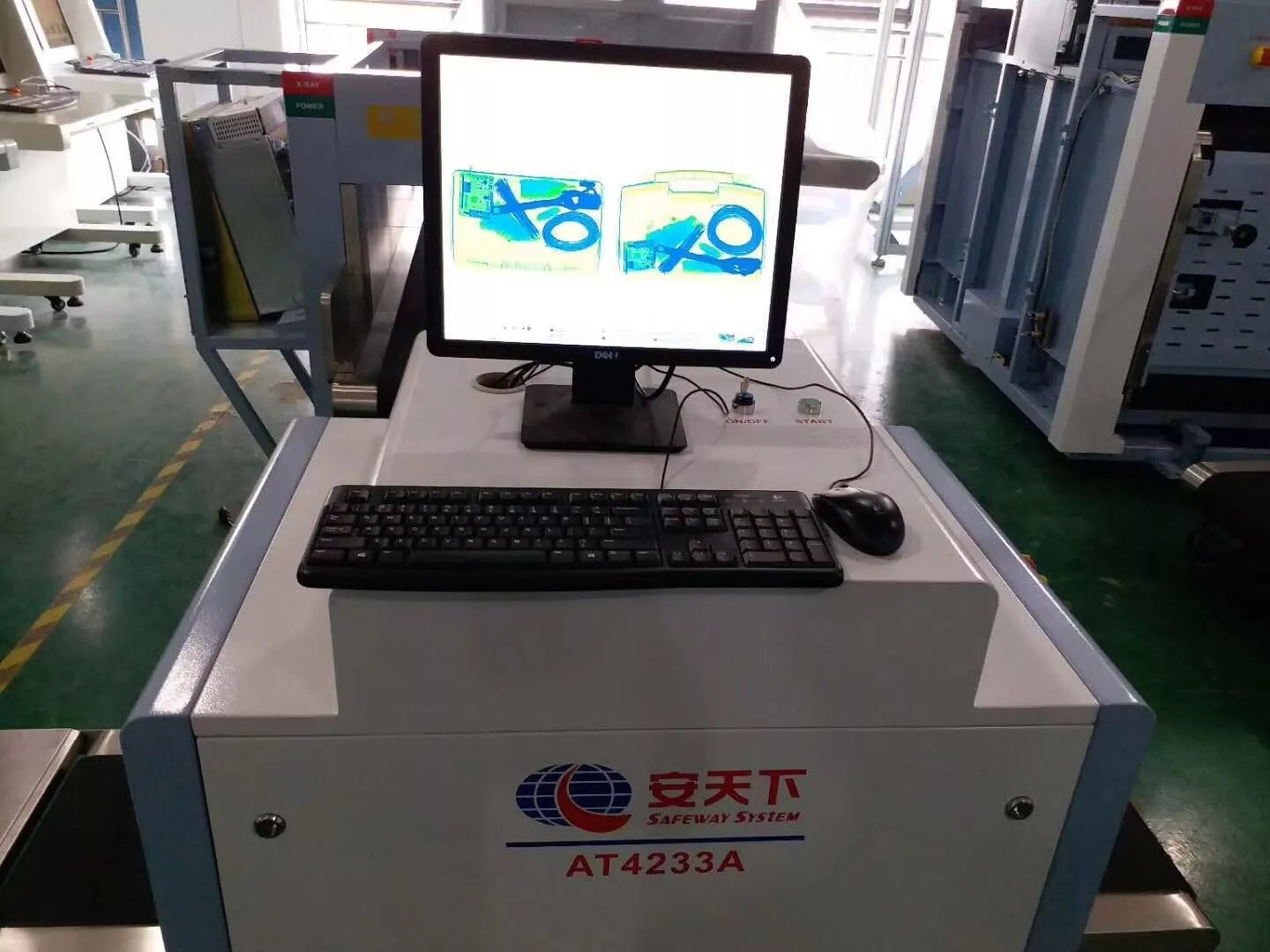

Spotting threats isn't magic - it's pattern recognition. We'll show you exactly what security operators see on their screens.
Here's your cheat sheet for spotting weapons:
| Item Type | X-ray Signature Characteristics | Detection Protocol |
|---|---|---|
| Firearms | Trigger shapes + dense blue blocks | Follow the barrel line - real guns align perfectly |
| Knives/Blades | Thin blue lines + handle outline | Trace the edge - blades show continuous sharp edges |
| Taser Guns | Tiny circuit boards + cylinder batteries | Spot the twin electrodes - they always appear near grips |
Liquid explosives
Look for:
Uniform orange bottles
Wires/circuits clustered at the cap
Detection move: Check cap seals - tampered ones show jagged edges.
Powder substances
Flour vs. explosives? Powders appear grainy
Danger sign: Too uniform texture in organic (orange) zones.
IED components
Pressure cookers scream trouble:
Thick green walls + dense blue lid
Wires coiled at the bottom like spaghetti.
Lithium batteries
Swollen cells show bubbled edges in blue zones
Overheating risk? Look for white "halos" around them.
Concealed drugs
Organic clumps (orange) inside electronics
Dead giveaway: Too perfect rectangles in battery compartments.
Tools as weapons
Wrenches: Solid blue with tooth patterns
Hammers: Distinct T-shape + dense head
Threat level: Judge by context - in a laptop bag? Suspicious. In a toolbox? Probably safe.
Mastering X-ray screening is not just about understanding the technology—it's about perfecting the human element. While advanced scanners provide the foundation, it's the trained eyes and sharp minds of security professionals that truly make the difference. By recognizing the subtle patterns of prohibited items and understanding the limitations of equipment, you become an invaluable line of defense. Continuous learning and hands-on practice are essential to stay ahead of evolving threats. Remember, in the high-stakes game of security, your attention to detail and commitment to excellence are the ultimate tools for protecting lives and maintaining safety.
