Modern travelers and professionals carry an unprecedented density of lithium-ion batteries, power banks, and complex electronics, creating a high-stakes environment at airport security checkpoints. To a security scanner, the dense metallic components, wiring, and chemical makeup of consumer batteries closely mimic the profile of explosive device components. This similarity leads to increased secondary screenings, delayed transit times, and the risk of expensive equipment confiscation. Navigating this friction requires an understanding of how dual-energy x-ray systems classify materials. By aligning battery purchasing decisions with aviation compliance standards (Watt-hour limits) and optimizing packing strategies, travelers can ensure seamless security clearance and protect their hardware. Security operators have seconds to evaluate complex bags. Understanding their perspective helps you pack smarter, avoid manual searches, and keep your expensive gear out of the confiscation bin.
Material Density Dictates Visibility: A battery on airport x ray monitors appears as a dense, inorganic object—typically rendered in blue or black—making it highly visible against organic materials like clothing.
Strict Carry-On Requirements: Lithium-ion power banks and spare batteries must strictly be transported in carry-on luggage due to thermal runaway risks in the cargo hold; checked baggage scanners will flag and trigger the removal of these items.
Capacity Compliance is Non-Negotiable: Aviation authorities universally cap travel-friendly batteries at 100 Watt-hours (Wh) without airline approval, making clear manufacturer labeling a critical purchasing criterion.
X-Rays Do Not Degrade Battery Health: Despite common travel myths, the ionizing radiation from standard or 3D CT airport scanners does not cause chemical degradation or capacity loss in consumer electronics or camera batteries.
Table of Contents
Security checkpoints rely on advanced physics to peer inside closed luggage. Modern checkpoint scanners emit two distinct x-ray energy levels. These dual-energy systems measure the mass and atomic number of objects passing through the tunnel. The x-ray generator fires a beam through the bag, and a detector array on the opposite side measures the attenuation. Dual-energy systems use two detector arrays separated by a copper filter. The first array measures low-energy x-rays. The copper filter then blocks the remaining low-energy photons, allowing the second array to measure only the high-energy x-rays.
By comparing the data from both arrays, the computer calculates the effective atomic number of the material. Passenger body scanners rely on millimeter-wave energy bouncing back from surfaces, but baggage scanners operate entirely differently. They rely on energy transmission and absorption. The system measures exactly how much x-ray energy passes through an object. This data helps the computer differentiate between various material types. The dual-energy approach prevents dense objects from completely blinding the scanner, giving operators a layered view of the bag's contents.
X-ray systems use a universal color-coding system to display material density. This helps operators quickly identify potential threats on their monitors. The software maps specific atomic numbers to specific colors, allowing screeners to visually separate clothing from electronics.
X-Ray Scanner Color Classification
Color Displayed | Material Category | Common Luggage Examples | X-Ray Interaction |
|---|---|---|---|
Orange | Organic Materials | Plastics, food, clothing, paper, leather | X-rays pass through easily with minimal absorption. Low atomic numbers scatter the low-energy beams. |
Green | Mixed Materials | Glass, aluminum, light alloys, thin electronics | Moderate energy absorption occurs. The system detects medium atomic numbers. |
Blue or Black | Inorganic & Dense Materials | Copper wiring, steel, lithium-ion cells, brass | High energy absorption blocks most x-rays. High atomic numbers absorb both high and low-energy beams. |
Batteries feature tightly packed metallic anodes and cathodes. They contain dense chemical electrolytes and utilize copper and aluminum foils rolled tightly together. These internal components absorb significant x-ray energy. They render as solid, opaque shapes on the operator's screen. A battery on airport x ray display appears as a dense block, making it highly visible against softer organic materials like folded shirts.
The dense nature of lithium-ion cells guarantees they will stand out during screening. The scanner cannot see inside the battery cell itself. It only sees the heavy metal casing and dense internal structure. This opacity forces operators to look at the surrounding context of the battery. If the battery overlaps with other dense items, it creates a visual void on the screen, often prompting a manual bag check to verify the obscured contents.
Security screeners face a fundamental daily challenge. Improvised explosive devices rely on the exact same components as everyday electronics. Power sources, wiring, and switches form the core of both a laptop and a potential threat. A power bank wrapped in a charging cable looks highly suspicious because it mimics the visual signature of a detonator wired to a power source. The operator must quickly decide if the wiring serves a legitimate purpose. They have only seconds to evaluate each bag passing through the tunnel.
Photographers and drone operators trigger these profiles frequently. A camera bag often contains multiple high-capacity V-mount batteries, trigger cables, and dense glass lenses. When these items sit next to each other, they form a complex web of inorganic material. The operator has to trace the wires visually to ensure they connect to a benign device rather than an explosive charge.
People now travel with a massive volume of electronics. Multiple chargers, wireless earbuds, and tangled cables fill modern backpacks. This clutter inadvertently mimics the visual signature of a threat. Tangled wires obscure clear views on the scanner monitor. Cords overlapping with dense batteries create confusing shapes.
Standard x-ray lanes present a flat, two-dimensional image. Dense objects block everything behind them. If a battery sits on top of a laptop, the operator sees a massive black void. They cannot determine what lies beneath. Operators must pause the belt to analyze the messy image. This manual process slows down the entire security line and increases the likelihood of your bag being pulled for a physical search.
Screeners use specific analysis techniques to evaluate these dense shapes. They look for anomalous wiring paths connecting to the battery. They search for hidden modifications within the device casing. They trace every wire from the power source to its endpoint. They also check for organic masses suspiciously connected to the inorganic battery block.
Organic masses often indicate explosive materials. If an organic orange mass touches a dense blue battery, it triggers an immediate manual search. Operators receive extensive training to spot these specific combinations. They know what a factory-standard laptop battery looks like versus a modified power source. Any deviation from the standard manufacturing profile warrants closer inspection.
Newer Computed Tomography (CT) scanners change this dynamic entirely. These 3D CT scanners allow operators to digitally rotate the bag's contents. They build a three-dimensional map of the luggage by spinning the x-ray source and detectors around the bag, taking hundreds of slices. Operators can slice the image to see behind dense objects.
This reduces the need to physically remove power banks. It provides a clear view of the battery's context within the luggage. If a battery blocks another item, the operator simply rotates the image on the touchscreen. They can strip away organic layers to look solely at the metallic components. This technology significantly reduces false alarms caused by dense electronics and speeds up the screening process.
Global aviation standards dictate strict rules for battery transport. Batteries must remain under 100 Watt-hours for unrestricted travel. You can carry up to 160Wh with explicit airline permission, though this often requires declaring the item at the check-in desk. You must calculate the capacity if your device lacks a clear Wh rating. Use the standard formula: milliamp-hours multiplied by voltage, divided by 1000.
Most USB power banks utilize 3.7-volt internal lithium-ion cells, even if they output at 5 volts. A 20,000mAh battery operating at 3.7 volts equals 74Wh. This falls safely under the legal limit. A massive 30,000mAh battery equals 111Wh. This requires airline approval before flying. Knowing these limits prevents unexpected confiscations at the checkpoint.
Common Battery Capacities and Aviation Compliance
Device Type | Average Capacity (mAh) | Estimated Watt-Hours (Wh) | Flight Status |
|---|---|---|---|
Smartphone Battery | 3,000 - 5,000 mAh | 11 - 18 Wh | Unrestricted Carry-On |
Standard Power Bank | 10,000 mAh | 37 Wh | Unrestricted Carry-On |
Laptop Power Bank | 20,000 - 26,800 mAh | 74 - 99 Wh | Unrestricted Carry-On |
Heavy Duty / Drone Pack | 30,000+ mAh | 111+ Wh | Requires Airline Approval |
Security officers rely entirely on physical device labels. A high-quality power bank must feature a permanently etched Wh rating. Devices with rubbed-off labels risk immediate confiscation. Officers cannot verify the actual size without clear text. They will not plug the device in to test it, nor will they look up the model number online. They will simply throw it in the disposal bin.
Cheaper power banks often use printed text that wears off after a few months of sliding around in a backpack. Premium brands laser-etch this critical information directly into the casing. When purchasing a battery for travel, inspect the labeling method. If you can scratch the text off with your fingernail, it will not survive a year of heavy travel.
Travelers must weigh form factor against portability. High-capacity, multi-device laptop power banks are incredibly dense. They are more likely to obscure other items on an x-ray screen. This density forces screeners to pull the bag for a physical check. Modular, lower-capacity batteries offer easier packing and scan clearly without triggering manual checks.
Carrying two slim 10,000mAh batteries often causes less friction than one massive 26,000mAh brick. Slim batteries lay flat in a backpack. They allow x-rays to penetrate the rest of the bag easily. If you need massive amounts of power for remote work, consider distributing that power across multiple smaller devices rather than relying on a single dense block.
Loose lithium batteries face an absolute prohibition in checked luggage. Cargo holds lack the specialized fire suppression systems found in passenger cabins. Lithium-ion batteries can enter thermal runaway if crushed, punctured, or subjected to extreme pressure changes. This chemical reaction occurs when the internal separator fails, allowing the anode and cathode to touch directly.
This creates an immediate short circuit that generates extreme heat. The liquid electrolyte boils and catches fire, producing toxic gas and self-sustaining flames. Cabin crews can quickly extinguish thermal runaway events using specialized containment bags, fire-resistant gloves, and water extinguishers. Automated cargo hold systems cannot suppress self-oxidizing lithium fires. Halon gas systems in the cargo hold smother normal fires by removing oxygen, but lithium fires generate their own oxygen. Baggage handling systems automatically scan checked bags for these dense shapes and will pull your bag to remove the battery.
Current TSA and international protocols vary regarding device removal. Laptops generally require removal in standard x-ray lanes because their dense motherboards and batteries block the view of items underneath them. Standalone smartphone power banks often stay inside your bag. However, larger laptop power banks might need removal.
If a dense battery blocks the x-ray view of other items, operators will flag it. Lanes equipped with 3D CT scanners usually allow all electronics to remain packed. When in doubt, place large power banks in a separate bin. This guarantees a clear scan and prevents a manual search of your entire backpack. Following the instructions of the specific lane operator remains the best approach, as equipment capabilities vary from airport to airport.
Proper cable management reduces secondary screening risks. Separate power banks from thick cable organizers. Bundled cables next to a battery create a threat-like image. This visual immediately triggers manual bag checks. Use dedicated pouches to keep cables away from dense power sources. Grid organizers work perfectly for this task, locking cables into elastic bands to prevent them from tangling during transit.
Isolate Power Sources: Pack batteries in a dedicated pouch away from charging cables and wired headphones.
Layer Strategically: Pack batteries in a single layer near the top of your bag. This placement allows x-rays to penetrate without interference from other dense objects.
Protect Terminals: Store spare camera batteries in plastic cases or tape the terminals. This prevents the metal contacts from touching loose change or keys, which causes immediate short circuits.
Never Wrap Cables: Never wrap a charging cable directly around a power bank. Keep the power source completely isolated from the wiring to avoid mimicking an explosive device.
Many travelers worry about radiation damaging their expensive electronics. Low-dose x-ray radiation used in baggage screening lacks high energy. It cannot alter the chemical composition of lithium-ion cells. It does not damage the physical structure of consumer electronics. The radiation exposure is incredibly brief, lasting only seconds as the belt moves through the tunnel.
This exposure has zero impact on battery health, maximum capacity, or charging speed. X-rays are a form of ionizing radiation, meaning they have enough energy to knock electrons out of atoms. While this damages DNA in living tissue, solid-state electronics and chemical batteries do not rely on cellular division. Memory cards, hard drives, and camera sensors remain completely safe passing through standard and CT baggage scanners.
Travelers often test camera batteries before departure, only to arrive at their destination and find them completely dead. This leads to false accusations against the x-ray machines. This phenomenon happens due to accidental power-on in tightly packed bags. Physical buttons get pressed against other items in transit, turning the device on and draining the battery.
Ambient temperature changes in the aircraft cabin also affect battery voltage. Cold temperatures temporarily reduce the battery's ability to deliver power, making it appear dead until it warms up. Prolonged standby time drains power naturally. X-ray damage does not cause this issue. Pack batteries in protective cases to prevent accidental activation and maintain their charge during long flights.
Audit your current travel electronics and remove any power banks with worn-off or illegible capacity labels to prevent confiscation.
Calculate the Watt-hour rating of your largest power banks using the standard formula (mAh × V / 1000) to ensure they fall under the 100Wh limit.
Adopt a modular packing strategy by storing cables in a separate organizer away from your dense lithium-ion batteries.
Pack large power banks and heavy electronics near the top of your carry-on bag for quick removal if requested by security personnel.

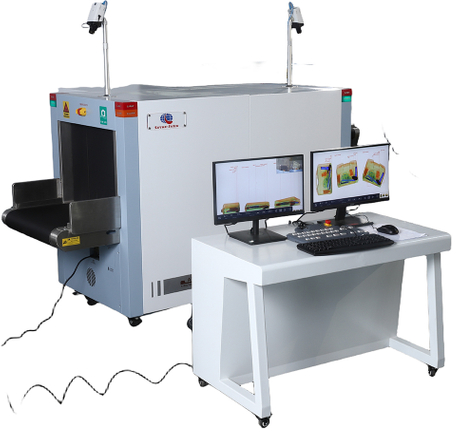

For airports and security operators, efficient passenger screening also depends on reliable inspection technology that can clearly identify dense electronics, batteries, and other suspicious objects without unnecessarily slowing checkpoint operations. Safeway System, established in 2008, is a China-based manufacturer and supplier of X-ray baggage scanners and EOD security inspection equipment, with solutions used across airports, public transportation, critical infrastructure, ports, borders, and other security-sensitive environments worldwide.
A: Generally, no. Unless instructed by a security officer or if you are carrying a particularly large laptop power bank that obscures other items, it can usually remain in your carry-on, especially in lanes utilizing newer 3D CT scanners.
A: Batteries typically appear dark blue or black on an x-ray monitor. This color indicates dense, inorganic materials, which absorb most of the x-ray energy, contrasting with organic materials that appear orange.
A: No. The x-ray technology used for security screening does not emit the type of energy that can chemically degrade lithium-ion cells or drain their charge. Batteries found dead after a flight are usually due to accidental activation in luggage or temperature fluctuations.
A: Lithium batteries pose a thermal runaway (fire) risk. If a fire starts in the passenger cabin, crew members can extinguish it; fire suppression systems in the cargo hold are not designed to handle self-oxidizing lithium fires.
A: Agents check the physical labeling on the device. If the Watt-hour (Wh) or milliamp-hour (mAh) rating is missing, illegible, or exceeds 100Wh without prior airline approval, the item is subject to confiscation.
A: While the dense materials look similar, scanners use dual-energy technology to highlight organic materials (often used in explosives) in orange. Operators are trained to look for specific combinations of organic masses wired to inorganic batteries, switches, and cables.
