AT100100D
Safeway System

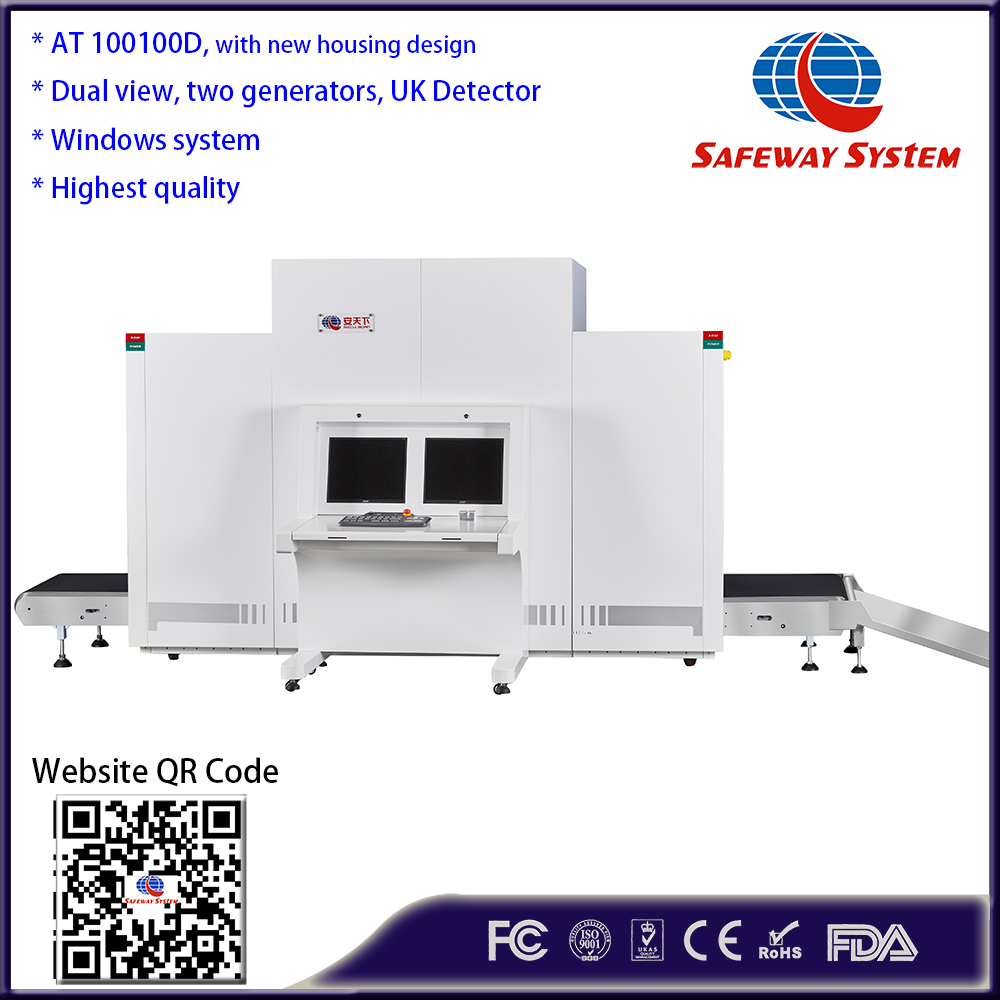

AT100100D High quality Dual Energy Security X-ray Machine and Baggage & Luggage Scanner -
Biggest Manufacturer with CE, FCC, FDA approved
AT100100D X-ray Baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination. It is applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.
AT100100D belongs to the “X-Ray Luggage Scanner” product family, which are designed for the security inspection of the big baggage, luggage and cargo etc.
Dual view with two x-ray generators. Advanced model of AT100100.
It’s widely used in the airport, logistics, subways, bus station, hotels etc.
Dual View
* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Uninterruptable power supply (UPS)
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
* baggage counter
NO. | Item | Tested Value | |
1 | Wire resolution | 38 | AWG |
2 | Penetration resolution | 30 | AWG |
3 | Spatial resolution | Vertical: 0.8 Horizontal: 0.8 | mm |
4 | Penetration | 36 | mm |
5 | Organic matter resolution | 1-120 | mm |
6 | Grayscale, mixture resolution | 1-60 | mm |
7 | Inorganic resolution | 0.2-14 | mm |
8 | Effective material resolution | Compliant with GB15208.1-2018 standards | |
NO. | Item | Tested Value | |
1 | Wire resolution | 38 | AWG |
2 | Penetration resolution | 30 | AWG |
3 | Spatial resolution | Vertical: 0.8 Horizontal: 0.8 | mm |
4 | Penetration | 36 | mm |
5 | Organic matter resolution | 1-120 | mm |
6 | Grayscale, mixture resolution | 1-60 | mm |
7 | Inorganic resolution | 0.2-14 | mm |
8 | Effective material resolution | Compliant with GB15208.1-2018 standards | |
NO. | Item | Tested Value | |
9 | single dose | ≤4.8 | uSv(uGy) |
10 | leakage dose | ＜1 | uSv/h(uGy/h) |
11 | noise level | No more than 60dB | |
12 | conveyor belt speed | Around 0.2 m/s | |
13 | Conveyor belt maximum load | 250kg | |
14 | Maximum power consumption | 1.5 kW | |
15 | safety performance requirements | Compliant with GB15208.1-2018 standards | |
16 | Electromagnetic Compatibility Requirements | ||
17 | Electrical Safety | ||
18 | Environmental adaptability | ||
19 | leakage current | No more than 5.0mA | |
20 | film security | Compliant with ASA/ISO 1600 film safty standards | |
21 | weight | 1150kg | |
22 | Working environment temperature/relative humidity | 5℃～40℃；0%～90% | |
23 | Storage temperature/humidity | -20℃～+60℃/10%～90% | |
24 | Atmospheric pressure | 86kPa～106kPa | |
25 | Working power | AC220V+10%~-15%，50Hz±3Hz | |
26 | operating system | Windows XP. Win 7. Win 10 (optional) | |
NO | Item | Functions |
1 | Calibration | With fault self-checking function, the corresponding fault information can be displayed when a fault occurs |
2 | Image Processing | With color/black and white, local increase, high penetration, low penetration, super increase, organic highlighting, inorganic highlighting, inverse color, brightening, darkening, gray sweeping, zooming, organic marking, suspicious object marking, edge enhancement processing functions |
3 | image pullback | 30 checked images can be played back |
4 | Number of image storage | Can store 50,000 checked images |
5 | image management | With image information query, opening, exporting, printing and other functions; exportable6 image formats (XF, PNG, BMP, JPEG, TIFF, GIF) |
6 | Operator management | Operators can be added and deleted, and the operator name, group, password, enabling status can be modified, and the usage log can be exported. |
7 | Dangerous Image Insertion (TIP) | You can add and delete TIP insert pictures, you can set the TIP enable status,Injection interval, floating range, motion judgment time, stationary judgment time; the user can check the operator by recording the information |
8 | Device diagnosis | The key components of the equipment can be diagnosed through the diagnostic interface, including detectors, motor forward and reverse rotation, infrared sensors, special keyboards, etc. |
9 | system settings | Programmable keys, imaging display (horizontal/vertical mirroring, maximum magnification Multiples, display recovery), scanning mode settings (two-way, direction, strong scanning, energy saving), auxiliary inspection (impenetrable, explosives, drugs), luggage Set the counter function |
10 | System device information | display software version number, copyright, device model, factory number, scan Counting, power-on time, output time, image file storage capacity and other information |
11 | training function | Automatic outsourcing training for new learners |
NO | Item | Details |
1 | X-ray generator | Anode voltage: 160kV, cooling method: sealed oil cooling |
2 | electric drum | DC |
3 | computer | CPU: Intel I3 3.3GHz Hard disk: 1T, memory: 4G |
4 | monitor | 29-inch LCD monitor, resolution: 2560x1080 |
5 | Console & Keyboard | console table, with dedicated keyboard |
NO | List | Q’TY（PCS） |
1 | AT100100D complete machine | 1 |
2 | User manual, warranty card + certificate, mouse pad, packing list, key, sticker | 1 |
3 | Dedicated keyboard and mouse | 1 |
4 | W/ console with monitor | 1 |
5 | extended table | 1 |
6 | power cable | 1 |
Available Designs for OEM brands copyrights and patents reserved
#1
#2
#3
| Product Family for X-Ray Baggage & Luggage Scanner for Security Inspection | |||
| Operating system available | Operating system: Windows | Operating system: linux | |
| Outlook housing available for mass production | two standard designs ( AT & B) , two OEM designs (ZA & HT ) | one standard design (TH), two OEM designs (ZA & HT ) | |
| X-Ray Generators available | 100kv, 140kv, 160kv, 200kv | 80kv, 140kv, 160kv, 200kv | |
| Brands of Generators available | Safeway System; Spellman; VJ etc. | Safeway System; Spellman; VJ etc. | |
| Tunnels available (W*H; cm) | 50*30; 60*40; 65*50; 80*65; 100*80; 100*100; 100*120; 120*140; 150*150; 150*180 | 50*30; 60*40; 65*50; 80*65; 100*80; 100*100; 100*120; 120*140; 150*150; 150*180 | |
| Different Views available | Single view, dual view, three view | Single view, dual view | |
| Functions | 4 colors dual energy | 4 colors single or dual energy | |
