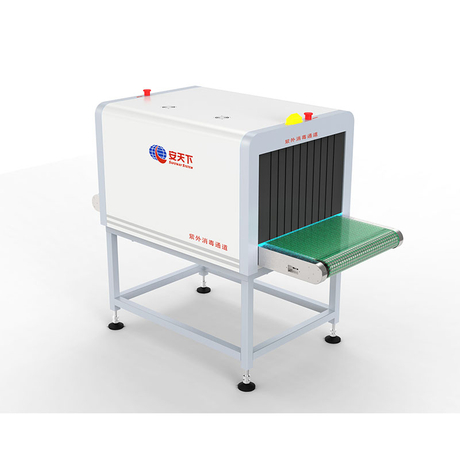

Technical parameters of ultraviolet disinfection channel

General specifications:

1 Power supply mode 220VAV±10%/50Hz±3Hz

2 Rated power 600W

3 Dimensions 1500×740×1200㎜ (L×W×H)

4 Channel size 600×400 (W×H)

5 channels inner length 950mm

6 Belt speed 0.1m/s

7 Belt load capacity 80kg

8 Net weight 220kg

UV disinfection specifications:

1 Disinfection lamp Philips PL-L

2 Rated power 36W/piece

3 Number of lamps 8

4 Lamp life 8000Hrs

5 UVC wavelength 250-26nm
